NYX 系列(NYX650, NYX660)

30fps 高帧率     无限制多机共存

  抗强光           IP67 防护等级

Vzense NYX 660脉冲iToF RGBD相机

采用Nuvoton(前身为Panasonic)的脉冲波TOF芯片技术,使用940nm红外光,室内和室外场景皆适用。

相机特点:

  • ToF分辨率:640 x 480;帧率:最高可达30帧/秒;ToF视场角:水平70°,垂直50°;
  • RGB分辨率:1600 x 1200像素,采用全局快门;RGB视场角:水平70°,垂直50°;
  • 工作范围:0.3至4.5米;绝对精度:超过98%;相对精度:约99%。(*注意:检测距离和精度可能因测量对象的表面反射率而有所不同。)
Get A Quote Now

产品详参

产品型号NYX650 NYX660
ToF 传感器Pulse iToF , 640*480dpiPulse iToF , 640*480dpi
ToF 帧率Max. 30fpsMax. 30fps
激光940nm VCSEL*2940nm VCSEL*2
ToF 视场角70°(H)* 50°(V)70°(H)* 50°(V)
RGB 模组Global Shutter, 1600*1200dpiGlobal Shutter, 1600*1200dpi
RGB 视场角70°(H)* 50°(V)70°(H)* 50°(V)
供电方式12V~24V DCPoE+/12V~24V DC
物理连接RJ45+M8 Aviation PlugsM12 + M8 Aviation Plugs
通讯协议1000M ethernet&RS4851000M ethernet&RS485
输出格式16bit(depth)+8bit(IR)+JPEG(RGB)16bit(depth)+8bit(IR)+JPEG(RGB)
精度误差1%~2%1%~2%
测量距离0.3~4.5m0.3~4.5m
工作温度-20°C ~ 50°C-20°C ~ 50°C
运行系统&平台Windows/Linux/Arm Linux/ROS1/ROS2Windows/Linux/Arm Linux/ROS1/ROS2
软件工具包C/C++/PythonC/C++/Python
IP防护等级IP42IP67

产品尺寸

                                                                NYX650                                                                                                                                NYX660

                                                                                                                                  (unit: mm)

NYX SIZES DETAILED

包装尺寸

配件清单

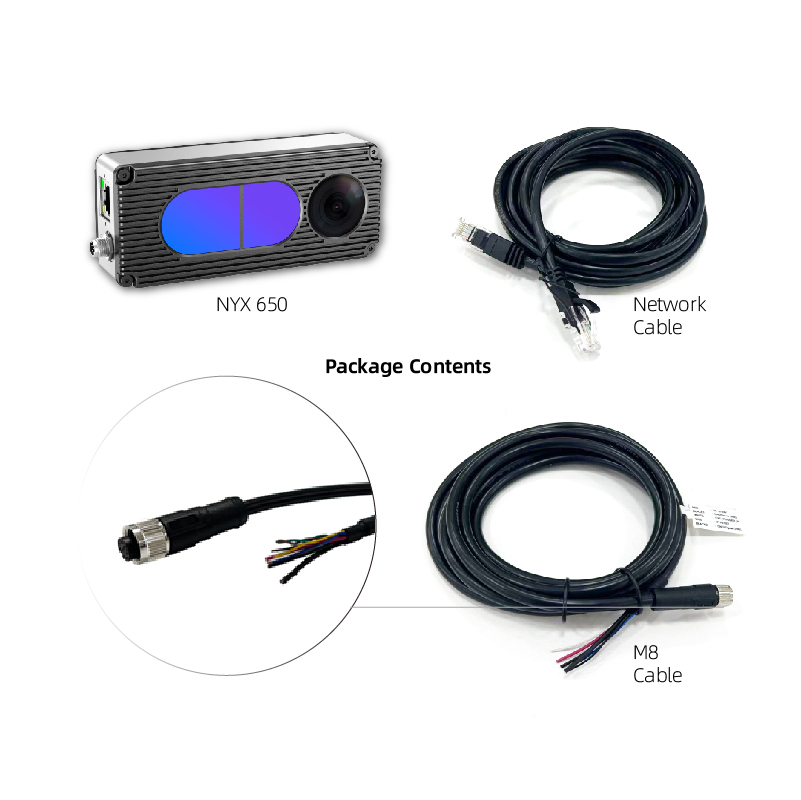

NYX 650

814000300025

-M12 X CODE CAT6a Ethernet cable; -Aviation Connector to RJ45; -Cord Length:3m

Download

814000300031

-M8 A CODE Multiple Functional Cable;-Cord Length: 2m

Download

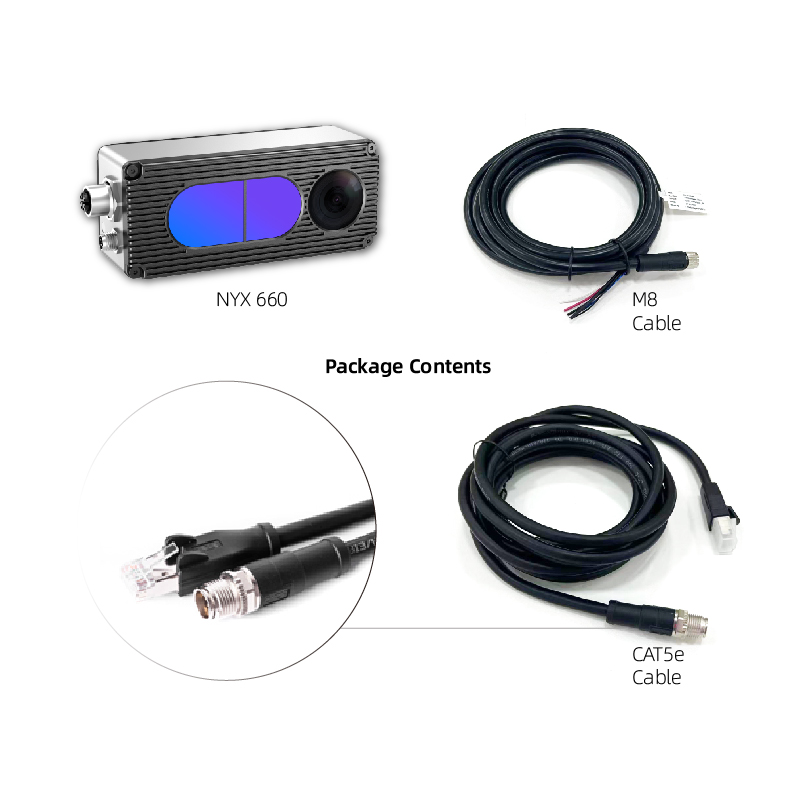

NYX 660

814000300031

-M8 A CODE Multiple Functional Cable;-Cord Length: 2m

Download

814000600027

-CAT5e Ethernet Cable,24AWG 4 Pair, Unshielded Twisted Pair;-Cord Length:3m

Download

相关文档




环境认证


可靠性测试


固件


开发者文档


软件工具包
